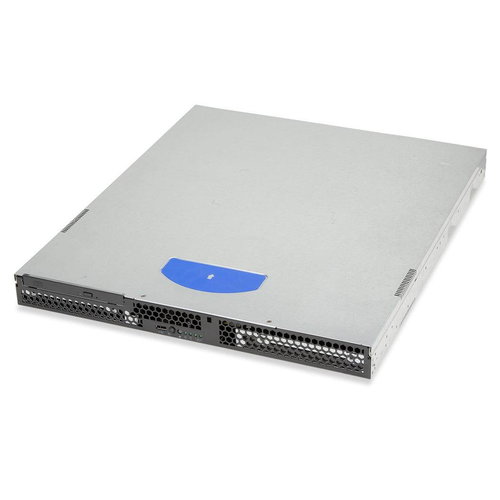

1U rack server platform INTEL SR1530HCLR + mother board S5000VCL Callahan
Product accessories
1U rack server platform INTEL SR1530HCLR + mother board S5000VCL Callahan
1U Rackmount optimized platform that provides highly integrated solutions for cost-demanding customers.It represents the latest generation of optimized servers from Intel.Ensures great flexibility in data storage, while maintaining a high security.It is a scalable solution ideal for expanding businesses.Allows you to connect up to three hot-swap 3.5 "Serial ATA drives and one slim-line drive.
Parameters and specifications:
Platform includes:
Intel server motherboard S5000VCL
Intel server box 1530H "Hawk Junction"
Intel server fixed 400 W source
1 x shaft supports 2 PCI slots (LP PCI-E x8 and FH / ML PCI-X 133)
System fans with dust filters
Slim-line DVD-ROM position
Pre-installed cables
Basic rails
Supported Processors:
2 x Multi Intel ® Xeon ® processor
51xx Woodcrest
53xx Clovertown
System Bus:
1066/1333 MHz
Chipset:
Intel ® 5000V
RAM:
DualChannel
6 x DDR2 667 MHz (max.12 GB ECC Fully Buffered)
Expansion Slots:
1 x low-profile PCI Express x8
1 x PCI-X 133 MHz half-size
Network card:
2 x Intel Gigabit Ethernet
Video card:
Integrated
ATI 16 MB of memory
Position:
3 x hot-swap 3.5 "Serial ATA
1 x optional slim-line DVD-ROM
Source:
400 W - neredundantní
Parameters and specifications:
Platform includes:
Intel server motherboard S5000VCL
Intel server box 1530H "Hawk Junction"
Intel server fixed 400 W source
1 x shaft supports 2 PCI slots (LP PCI-E x8 and FH / ML PCI-X 133)
System fans with dust filters
Slim-line DVD-ROM position
Pre-installed cables
Basic rails
Supported Processors:
2 x Multi Intel ® Xeon ® processor
51xx Woodcrest
53xx Clovertown
System Bus:
1066/1333 MHz
Chipset:
Intel ® 5000V
RAM:
DualChannel
6 x DDR2 667 MHz (max.12 GB ECC Fully Buffered)
Expansion Slots:
1 x low-profile PCI Express x8
1 x PCI-X 133 MHz half-size
Network card:
2 x Intel Gigabit Ethernet
Video card:
Integrated
ATI 16 MB of memory
Position:
3 x hot-swap 3.5 "Serial ATA
1 x optional slim-line DVD-ROM
Source:
400 W - neredundantní
Whole description
| Code: | AI604e |
| Links: | Producer's Website: |
| Manufacturer information |
Intel Deutschland GmbH, Dornacher Str. 1, 85622 Feldkirchen, Germany [email protected] Intel Corporation is the world's largest manufacturer of semiconductor circuits and related components, powering a large share of the world's computers, devices, and machines with their powerful and reliable processors. One of the most established and successful companies to come out of Silicon Valley, they've been a driver of the technology revolution ever since. Intel employs over 96,500 employees worldwide and is one of the biggest and richest companies in the world. For decades, their slogan was "Intel Inside"; however, they replaced with the more dynamic "Leap ahead" in 2005, signalling a renewed commitment to innovation.
|
