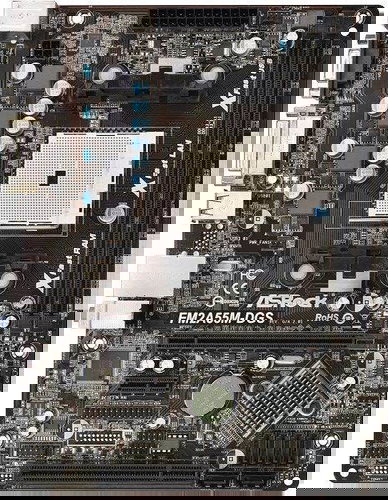

ASROCK FM2A55M-DGS R2.0
The motherboard, which is due to its format microATX best suited for multimedia HTPC build computers with emphasis on energy saving mode. Used A55 chipsetoffers full support for AMD Socket FM2. Despite its small size, the plate is not in functionality and limited equipment - is present PCI Express 2.0 slot for graphics card 6 SATA IIconnectors with RAID support, DDR3 memory (maximum frequency to 1866 MHz) and modern UEFI BIOS.
Function AMD Dual Graphics brings considerable argument for the construction of computer components from AMD only. Today's processors have integrated graphics core that when using a dedicated graphics card is idle. Engineers from AMD, however, came on the way combine the power of these two chips. Consumers can enjoy enhanced graphics performance for maximum experience.
Function AMD Dual Graphics brings considerable argument for the construction of computer components from AMD only. Today's processors have integrated graphics core that when using a dedicated graphics card is idle. Engineers from AMD, however, came on the way combine the power of these two chips. Consumers can enjoy enhanced graphics performance for maximum experience.
Whole description
Specifications
Socket and chipset
Socket
AMD FM2
Chipset
AMD A55
Format & functions
Motherboard form factor
mATX (Micro ATX)
Basic functions
Integrated network card, Integrated sound card, For CPU with integrated GPU
Memory
Memory type
DDR3
Number of RAM slots
2 ×
Max. frequency (OC)
1,866 MHz
Connection Mode
dual-channel
Advanced parameters
Sound card type
Realtek ALC662
Connectors
External
DVI, Jack, PS/2, USB 2.0, VGA (D-Sub)
Internal
Serial ATA II, USB 2.0 header
USB 2.0
4×
Serial ATA II
8×
PCI
1×
All parameters
| Code: | AS105f |
| Links: | Producer's Website: |
