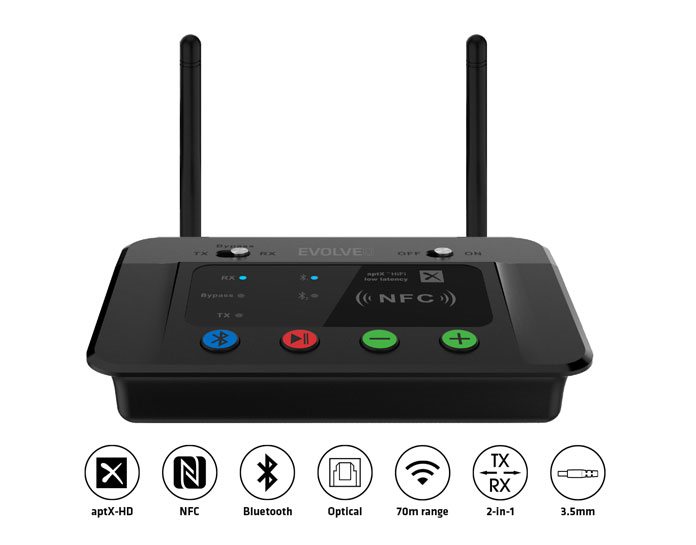

EVOLVEO AudioConverter XS
DAC / ADC converter with Bluetooth technology
Are you looking for a device that allows you to convert an audio signal in all different directions? EVOLVEO AudioConverter XS in a compact body hides DAC and ADC converter + Bluetooth transmitter and receiver, including NFC . This device allows you to play high quality music on your home HiFi system or in wireless headphones, speakers or soundbars.
Key features of the EVOLVEO AudioConverter XS audio converter
- Multifunctional device enabling audio signal conversion in various directions
- Includes both DAC and ADC converter
- It also works as a Bluetooth 5.0 transmitter and receiver with NFC and a range of up to 70 meters
- Possibility to connect 2 Bluetooth devices
- Support for 24bit aptX-HD codec with very low time delay
- No sync delay - suitable for watching TV, movies and playing games
- Modern design in black
- Optical and analog cables are included
Audio transmission in HD quality
EVOLVEO AudioConverter XS supports aptX-HD codec with very low time delay as well as 24bit audio. You can connect up to 2 Bluetooth devices to it at once, such as wireless headphones, speakers, soundbars, etc. In addition to listening to music, it is also great for watching TV, movies and playing games.

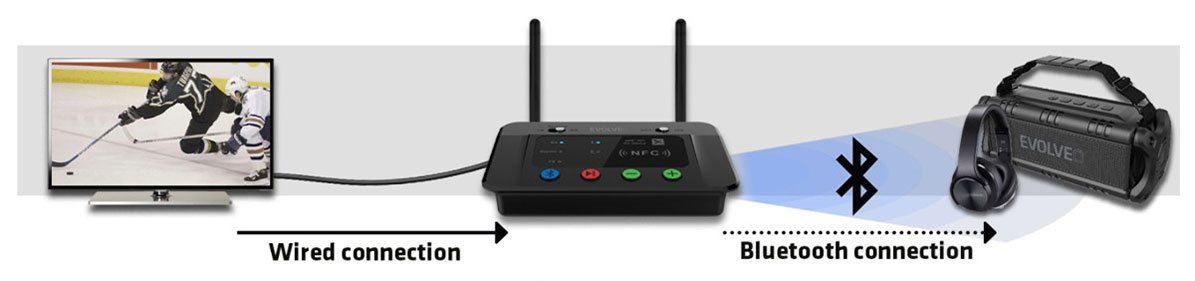

Transfer audio to Bluetooth headphones and speakers
Would you like to play audio from the TV to your wireless headphones or wireless speaker? In this case, simply connect the TV with an optical or analog cable to the EVOLVEO AudioConverter XS, which converts the audio signal and ensures its wireless transmission via the Bluetooth interface.

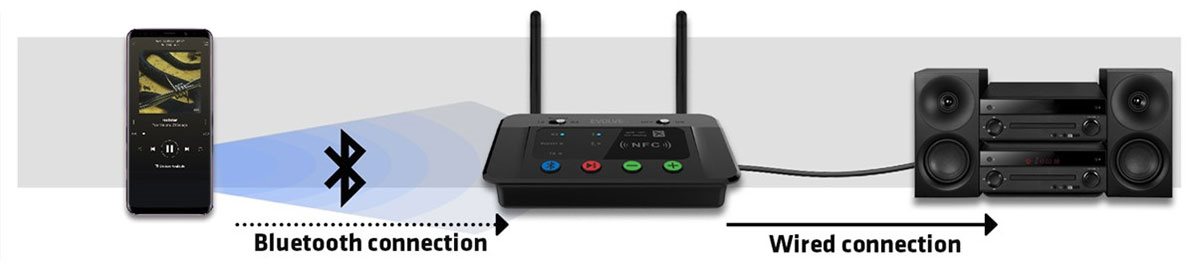

Wireless music listening from a mobile device

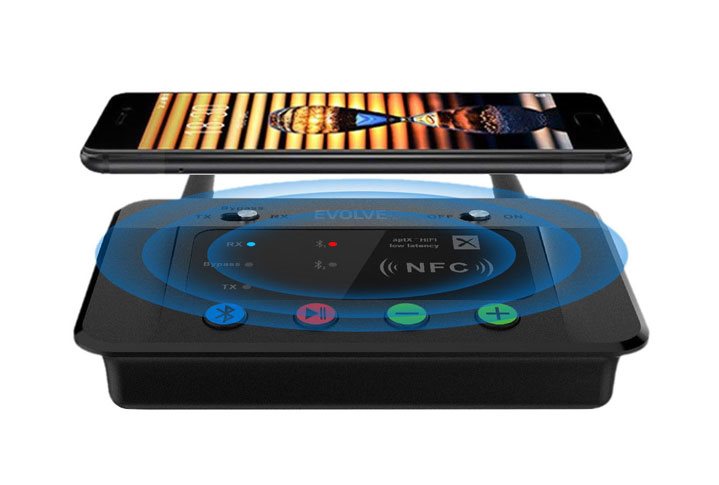

To listen to music from a mobile device on your HiFi system, pair the phone with the converter using the Bluetooth interface and then connect the HiFi system to the converter with a cable. Thanks to NFC technology, the connection to a smartphone is very fast and convenient.

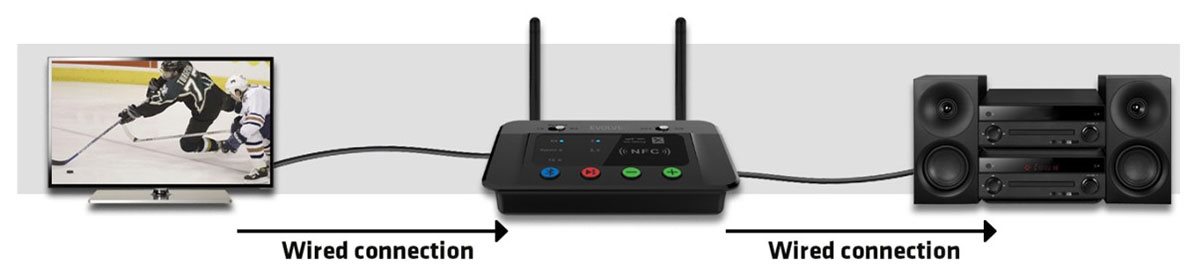

Cable connection
Individual devices can be connected to the converter without the use of Bluetooth technology. You have several different connection options to choose from:
- Optical cable -> Analog cable (DAC converter 16bit / 96kHz)
- Analog cable -> Optical cable (ADC converter 16bit / 48kHz)
- Optický/Analog cable -> 2 × Bluetooth devices (24bit through S / PDIF)
- Bluetooth input -> Optical / Analog cable
- Bypass function
Inputs:
1 × TOSLINK digital input (optical S / PDIF)
1 × 3.5mm audio jack (headphone / analog)
NFC - for fast and convenient mobile phone connection
Bluetooth - wireless audio input using a mobile phone or tablet
Outputs:
1 × TOSLINK digital output (optical S / PDIF)
1 × 3.5mm audio jack (headphone / analog)
Bluetooth - wireless transmission for up to two devices (wireless headphones / speakers / soundbars)
Buttons on the device:
Switching the device on / off
Mode switch (transmitter / receiver / bypass)
Volume control
Play / Pause
Button for pairing with Bluetooth devices
Description of the device:
Professional chip: Qualcomm CSR8670
Qualcomm® aptX ™ HD audio technology
Bluetooth 5.0 (range up to 70m, inside the building 25 - 35m)
Supported profiles and codecs: A2DP, AVRCP, SBC, APTX, APTX-LL, APTX-HD
2 × rotating antenna (non-removable)
Quiet operation - no fans
Equipment weight: 130g
Equipment dimensions: 126 × 94 × 29mm
Colour: black
Device power supply:
DC 5V
?150mA
MicroUSB input
(thanks to low consumption, the device can also be powered from a portable power bank)
Package contents:
AudioConverter XS
Power supply, input: AC100-240V 0.2A / Output: DC5V 1A
Power microUSB cable 1.5 m
Optical audio cable (M / M) 1.0m
Connecting audio cable 3.5 mm jack (M / M) 0.6
Connecting audio cable with cinch (2x RCA M / 3.5mm jack F) 0.4m
User manual
