GIGABYTE Z790 EAGLE AX
GIGABYTE Z790 EAGLE AX

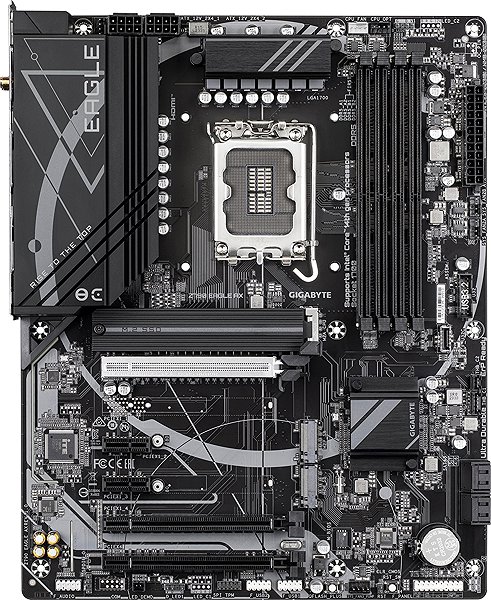

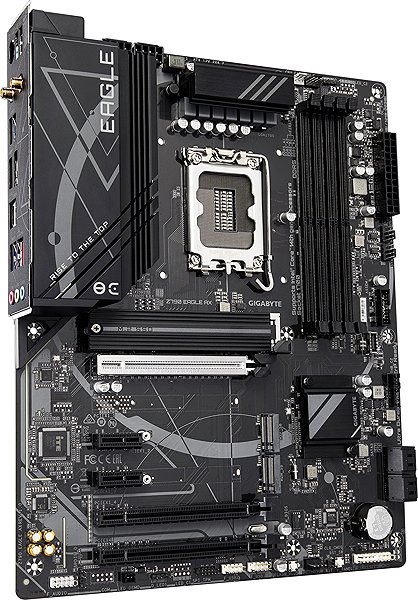

This GIGABYTE motherboard is built using the Intel Z790 chipset, and it has the Intel 1700 socket to accommodate the CPU. Classically, it is also equipped with a sound card which handles 7,1 channels. It is a very large motherboard for extremely powerful systems, which require multiple cards and complex cooling. If you want to build a PC with this motherboard model, you will require a compatible ATX format computer case.
GIGABYTE Z790 EAGLE AX Motherboard Key Features
- Intel 1700 socket and Intel Z790 chipset
- GIGABYTE Z790 EAGLE AX size: ATX
- Integrated audio card for 7,1 channels
- DDR5 computer RAM type with DIMM design
- The motherboard can accommodate 4 × dual-channel memory modules
GIGABYTE Z790 EAGLE AX Motherboard Connectivity
Computer RAM is extremely important, so this GIGABYTE motherboard has a total of 4 RAM slots. You can use DDR5 type DIMM RAM. You can connect them in dual-channel mode. This motherboard is compatible with modules with a clock speed of up to 8000 MHz.
GIGABYTE Z790 EAGLE AX Connectivity
This motherboard is designed for 2 graphics cards with PCI Express 16x slots. The internal interface also includes a total of 3 popular M.2 connectors. In terms of USB ports, it's got 4 × USB 2.0, 6 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports. The motherboard sports a dazzling RGB LED Header for exquisite light effects.
What Else Can the GIGABYTE Z790 EAGLE AX Motherboard Do?
- The motherboard comes with a built-in Realtek ALC1220-VB sound card
- Other reasons why you should buy this model include additional features such as Smart Fan 6 and RGB Fusion 2,0

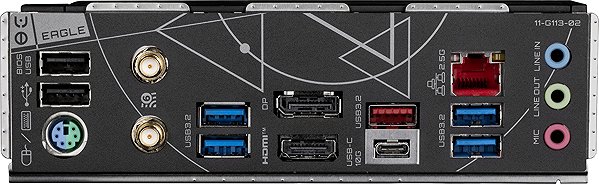

- External interfaces: RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2 and USB-C 3.2 Gen 2x2
- Supported internal interfaces: RGB LED Header, USB 3.2 Gen 1 header, USB 3.2 Gen 2 header, USB-C 3.2 Gen 1 header, PCIe 5.0 x16 and PCIe 4.0 x16
- The motherboard supports RAM modules with a clock speed of up to 8000 MHz
- SATA III: 6 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Series
Compatibility
Colour
| Code: | AGz790ea |
| Warranty: | 36 months |
| Links: | Producer's Website: |
| Manufacturer information |
SIL Servis Partner a.s., Těšínská 1970/56, 710 00 Slezská Ostrava, Czech Republic, +420 552 301 141, [email protected] Gigabyte, founded in 1986, is an irreplaceable player in the field of computer components. They put great emphasis on key technologies and the strictest quality standards. The company produces a wide range of basic computer components such as motherboards and graphics cards, but also have many computer peripherals, laptops, tablets, desktops and even network solutions and servers on offer. Recently they also introduced a line of Gigabyte mobile phones.
|
