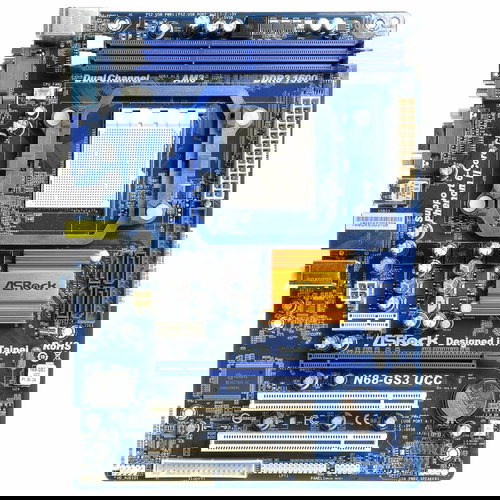

ASROCK N68-GS3 UCC

Affordable Micro ATX Motherboard ASRock N68-GS3 UCC will be a great foundation for any office computer.Its heart is the chipset using NVIDIA GeForce 7025 graphics core, which offers full support for DirectX 9 standardIf you need a higher video performance then you have one available PCI Express x16 slot for discrete graphics card.N68-GS3 UCC supports advanced processors in socket AM3.The only limitation is the recommended maximum TDP processor fitted which shall not exceed 95 W.
ASRock N68-GS3 UCC provides high-speed Gigabit Ethernet, through which you will download data from the network significantly faster and more efficiently.Although the use of conventional standard USB 2 ports0, and because of their optimization offers up to double the write speed.BIOS of this motherboard allows unlock deactivated CPU cores, which is always useful.What if you got a processor that has a disabled cores just functional.Mobile phone users will delight the iPhone App charger to ensure their up to 40% faster charging.Of course there is a set of technologies for energy efficiency, or applications to facilitate overclocking in Windows environment.
Specifications:
Basic:
Chipset: NVIDIA GeForce 7025/nForce 630a
Integrated chip: NVIDIA GeForce 7025 with support for DirectX 90
HyperTransport
Supported CPU:
Socket: AM3
Max.TDP: 95 W
X6/X4/X3/X2 Phenom II, Athlon II and Sempron CPU X4/X3/X2
Complete table of compatible processorshere

Memory:
2x DIMM slot
DDR3 1600/1333/1066/800
Max.8 GB of RAM
Slots:
1x PCI Express v2.0 x16
1x PCI Express x1
1x PCI slot

Serial ATA interface:
4 Serial ATA 3 Gb/s (1 ~ 4) ports
Supports storage and data transfer rates up to 3 Gb/s
RAID functions 0, 1, 0 +1, 5 and JBOD
Audio:
Integrated VIA VT1705 sound set
Flexible fifth1-channel audio output
LAN:
Realtek Gigabit LAN RTL8211CL
Support: 10/100/1000 Mb/s
Support Wake-On-LAN
Support PXE
Internal I/O Connectors:
4x Serial ATA II
1x ATA133 IDE
1x FDD connector
1x printer
1x CPU fan connector/housing
1x 24-pin ATX power connector
1x 4-pin 12V power connector
1 front audio connectors
2x USB 20 headers (for connecting up to 4 USB 20 ports)
I/O ports on the rear panel:
1x PS/2 mouse port
1x PS/2 keyboard port
COM 1 serial port
4x USB 20 port
1x VGA port
1x RJ-45 LAN
1x 3in1 audio jack
Specialties:
ASRock OC Tuner/Intelligent Energy Saver/Instant Boot/ASRock Instant Flash/ASRock OC DNA/ASRock AIWI/ASRock APP Charger/Hybrid Booster/CPU Frequency Stepless Control/ASRock U-COP/Boot Failure Guard (B.F.G.)
Design:
Dimensions: 244 x 178 mm
Format: Micro ATX
