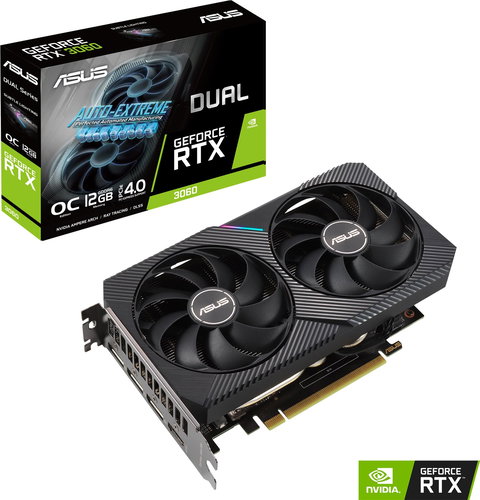

ASUS DUAL GeForce RTX 3060 O12G

Do you want a high-end gaming graphics card for the best experience when playing brand-new games? The ASUS DUAL GeForce RTX 3060 O12G graphics card with 12 GB of RAM is exactly what you're looking for, with a clock speed of 15000 MHz. With this amount of RAM, the 192Bit bus, and a core speed of 1320 MHz. With this graphics card, you will get excellent performance even when playing on max settings. for the connection of a monitor. This graphics card has the DisplayPort 1,4a and HDMI 2,1 interface for the connection of a monitor. The active cooling technology on this graphics card delivers very low temperatures, even under a heavy load.

ASUS DUAL GeForce RTX 3060 O12G Gaming Graphics Card Key Features

  • Graphics card features RTX 3060 graphics chip with 8 nm production technology
  • Graphics card is great for playing new AAA games or running 3D software
  • Thermal design power: 170 W
  • Recommended PSU performance of at least: 650 W
  • NVIDIA GeForce RTX 3060 graphics card operating memory: 12 GB
  • Graphics card cooling tech: Active
  • Graphics card display port: DisplayPort 1,4a and HDMI 2,1

ASUS DUAL GeForce RTX 3060 O12G Graphics Card Cooling and Dimensions

Active cooling technology, such as that, which is found in this graphics card, is popular chiefly because it's a good way to keep the component temperature low. The Dual-slot cooling system on this graphics card features 2 fans and matches its cooling output to the current processing load. The ASUS RTX 3060 graphics card has a total length of 200 mm, a depth of 123 mm, and a height of 38 mm. These graphics card dimensions make it compatible with most commonly available PC cases.

Graphics Card Has 12 GB GDDR6 System Memory

The ASUS GDDR6 type memory, which is on this graphics card, is the modern successor to the popular GDDR5 memory. Compared to GDDR5, it delivers greater capacity and 2× better performance. In the future, this technology is expected to become mainstream among GPU memory.

Specifications

Dimensions

Width 200 mm
Height 38 mm
Depth 123 mm

Chip

Chip manufacturer NVIDIA GeForce
Model designation RTX 3060
Graphics processor GA106
Chip architecture Ampere
Number of stream processors 3,584×
Production technology 8 nm

Performance & usage

Use Game playing

Memory

Memory type GDDR6
Bus width 192-Bit

Frequency

Core frequency 1,320 MHz
Core clock speed (Boost clock) 1,882 MHz
Memory frequency 15,000 MHz (15 GHz)
Effective memory clock (bandwidth) 15 Gbps

Interface

PC connection PCI Express x16 4.0
Monitor connection DisplayPort 1.4a, HDMI 2.1

Technology

DirectX version 12 Ultimate

Cooling system

Cooling type Active
Cooling size Dual-slot
number of fans 2 ×

Consumption

TDP 170 W

Backlight

Other features LED backlight
