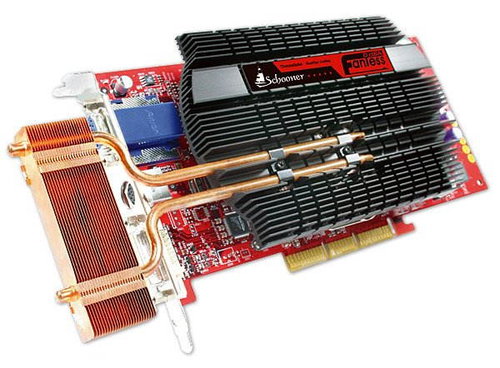

Chladič pasivní Thermaltake Schooner CL-G0009, VGA NVIDIA/ ATi, hliník (aluminium), heatpipe

Unique and completely silent cooling for the graphics card, using technology heatpipe.Cooler consists of two aluminum plates of heatpipe tube.Ran uchycený the core graphics card is made of copper and lead out out of the PC and outdoor air is cooled.The radiator is designed for NVIDIA graphics card and ATI.
Heatpipe technology is based on the principle of closed-tube, which in its "warm" the end is fluid with a low boiling point, which begins heating evaporate and form plyném rising to the "cold" end, where kondenzuje and after the walls of the tube is returned in liquid form back .When heating the liquid waste heat from the chip used to change the form and then in the form of hot steam goes to the other end, it is necessary to cool the temperature in the steam zkondenzuje.Unlike traditional convention, therefore, offers higher efficiency heatpipe technology transfer heat, but only provided a sufficient temperature difference between the two ends of the tube and its correct orientation.
The parameters and specifications:
Material:
Aluminium
Měděně body cooler on the GPU / VPU
Weight:
514 g
Durability:
Unlimited
Noise:
0 dB
