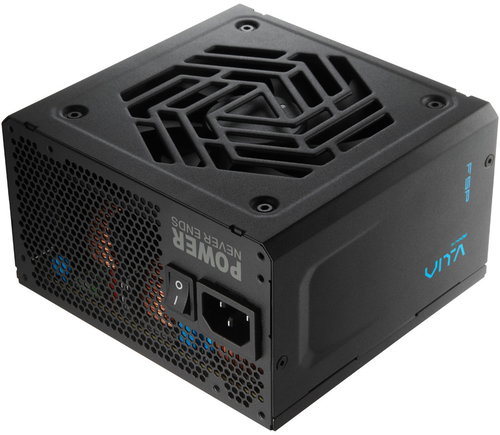

FSP Fortron VITA BD 650W
FSP Fortron VITA BD 650W
This power supply from FSP Group meets the modern ATX 3.1 standard, which means it supports up to 200% power spikes and is compatible with modern components. It achieves an efficiency of 88%, and its 80 PLUS 230V EU Bronze certification ensures lower energy losses and less heat generation. The design uses DC-to-DC converters for the +5V and 3.3V rails, which contribute to precise voltage regulation and greater system stability. Integrated protections (OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO) protect your hardware from electrical risks. Active PFC and a 120mm fan support stable and quiet operation even under heavy load.
650W
Power
ATX
Form factor
80 PLUS Bronze
Certification
No
Modularity
Key features of the FSP Fortron VITA BD 650W PC power supply
- Total power output of 650W
- 80 PLUS Bronze certification guarantees high efficiency
- Complies with the ATX 3.1 standard
- Uses a modern DC-to-DC circuit design for improved stability
- Cooling is provided by a 120mm fan with thermal speed control
- Offers a comprehensive set of eight safety protections
- Flat black cables make for easier organisation inside the case
Choosing a power supply
When choosing a suitable PC power supply, the key parameter, besides the form factor, is its power output. This indicates the maximum number of Watts the power supply can continuously provide to the components in your computer. It is a good idea to use a web-based calculator to work out the optimal power output based on your chosen components.
ATX 3.1 compliance and design
The VITA BD series complies with the Intel Power Design Guide ATX 3.1. It is compatible with the modern ATX 3.1 standard, which supports up to 200% power excursions, and with the PCI-E 12V-2x6 interface connector, ensuring high performance for future hardware upgrades. The DC–DC circuit design for the +5V and 3.3V rails ensures increased efficiency and stabilised output voltage. The power supply is built with an optimised thermal solution and an advanced 120mm fan. This combination keeps the components cooler and ensures quieter operation, increasing comfort when using your computer.
High efficiency and the +12V rail
This product is certified by global organisations as 80 PLUS 230V Bronze class. At typical loads, it guarantees lower energy losses, less heat, and quieter operation. Modern processors and graphics cards can draw a significant amount of power, especially under heavy load. A power supply with a single +12V rail offers a good balance between simplicity, power capacity and stability.
Black flat cables and a bulk capacitor
With improved black flat cables that are soft and easy to bend, users can handle them more easily. This saves time and creates more space for optimal cooling performance in your PC build. The bulk capacitor inside helps support operation at high temperatures or during significant voltage fluctuations. It stabilises performance for high reliability that your system can count on.
Comprehensive protection
Comprehensive circuitry protects your components from damage. The power supply is equipped with over-voltage protection, over-current protection, over-power protection, and over-temperature protection. It also includes short-circuit protection, under-voltage protection, surge and inrush protection, and supports no-load operation.
Connectors
- PC power supply
- Power cable
- 1× ATX 24-pin
- 1× CPU 8-pin (4+4)
- 1× PCI-E 6+2-pin
- 1× SATA
- 1× MOLEX/SATA
80 Plus certification in the European market
The 80 Plus certification was created to objectively assess the efficiency of PC power supplies. This gives users a simple and clear way to compare different models. On the European market (where 230V is used), there are six levels of 80 Plus certification with set requirements for PC power supplies. Higher energy efficiency primarily means lower energy consumption.
| PC power supply load | Efficiency at 20% load | Efficiency at 50% load | Efficiency at 100% load |
|---|---|---|---|
| 80 PLUS | 82% | 85% | 82% |
| 80 PLUS Bronze | 85% | 88% | 85% |
| 80 PLUS Silver | 87% | 90% | 87% |
| 80 PLUS Gold | 90% | 92% | 89% |
| 80 PLUS Platinum | 92% | 94% | 90% |
| 80 PLUS Titanium | 94% | 96% | 94% |
Specifications
Performance and format
Equipment
Efficiency
Connectors
Cooling system
Dimensions
| Code: | UDvbd4 |
| Warranty: | 60 months |
