Topdon TC005 thermal infrared camera
Topdon TC005 thermal infrared camera
Topdon TC005 thermal infrared camera
The Topdon TC005 infrared camera has a high resolution of 256 × 192 pixels, so you can say goodbye to blurry images. The camera is ready to analyze scenarios both in stand-alone mode and in real-time PC display mode. Therefore, the recorded images can be immediately uploaded from the TC005 to a computer and further processed.

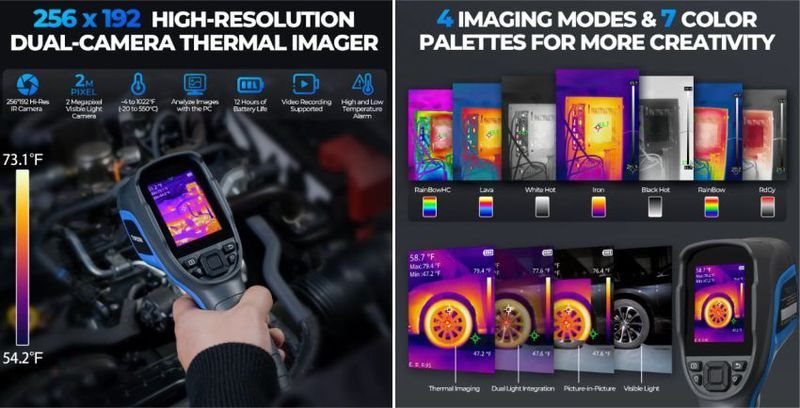

The infrared camera has four display modes
The Topdon TC005 thermal imaging camera has a 7-colour display with the option for Pseudo-Color Display. The TC005 features four imaging modes for early target identification. These include:
- thermal imaging mode
- Dual light mode
- Visible light mode
- ''picture-in-picture'' mode
Absolute clarity of display
With the Topdon TC005 thermal imaging camera you can capture images with a lot of detail. Thanks to the high thermal sensitivity (0.05 °C), even the smallest temperature differences can be detected. In addition, with the possibility of projection to a PC, you can further work with the measured data.
Professional analytical software
Store and easily share measured diagnostic data from the Topdon TC005 using the software. Thanks to it, the camera image can be projected in real time on the PC screen.
Wide temperature measurement range
The Topdon TC005 has a wide temperature measurement range from -20 to 550 °C with an accuracy of ±2 °C. NETD (Noise-equivalent temperature) = Noise-equivalent temperature is a measure of the sensitivity of a thermal radiation detector in the infrared, terahertz or microwave part of the electromagnetic spectrum. The sensitivity of the high-precision infrared sensor is less than 40 mK. It is these specifications that ensure Topdon TC005 the most accurate temperature measurement possible.
Topdon TC005 has high battery life
You can use the Topdon TC005 thermal imager for up to 12 hours on a single charge. With the integrated LED light, you can record temperature readings without the need for another light source. The Topdon TC005 has an IP54 rating, which protects it against dust, water and can also withstand a fall from a height of 2 metres. The thermal imager features an ergonomic handle that makes it easy to hold and point at any target.
Key features of the Topdon TC005 thermal infrared camera
- Colour display with option for Pseudo-Color Display
- 2 megapixel visible light camera for overlapping images and ''picture-in-picture'' mode
- High resolution and temperature sensitivity
- Equipped with a high resolution 256 × 192 px thermal imager
- High thermal sensitivity of 0.05 allows TC005 to distinguish even the smallest temperature differences
- IP54 rating for protection against water and dust
- 2 m drop resistance allows you to be carefree when using the device
- Built-in recessed LED light allows the user to record temperature readings without the need for an additional light source
- Temperature range from -20 to 550°C
- Built-in powerful battery allows the TC005 to operate for 12 hours
- Application in Czech for connection to mobile phones, PCs and laptops for download HERE
Specifications
Imagining
Connectivity
Equipment
Power Supply
| Code: | VKNGk3 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
