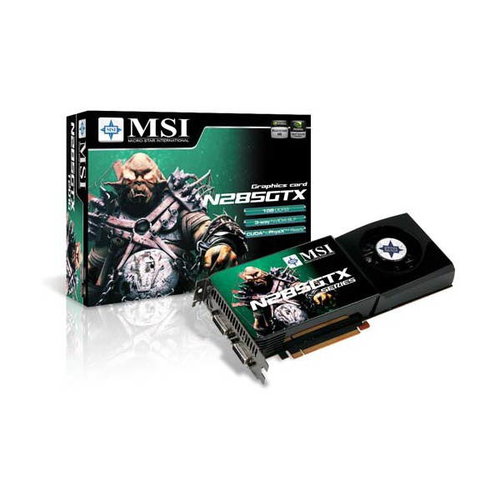

MSI N285GTX-T2D1G-OC

Modern graphics card with extreme performance designed for the most demanding users.GeForce GTX285 graphics chip is the latest product of the technological market leader - the NVIDIA.Kernel parameters are truly impressive - 1.4 billion transistors (previous generations had only half), 240 stream processors, 80 texture units and 512bitová wide memory bus.All these parameters give the graphics card performance almost 1 teraflop.The chip itself is taktovaný on the frequency of 680 MHz and fast DDR3 memory on the venerable 2500 MHz.The support of PCI Express x16 2nd0 interface, which compared with the current PCI Express ensures acceleration data to double and thereby significantly improve throughput.The card can be connected to two monitors using 2 DVI outputs.

The graphics card is produced using advanced 65 nm technology, which includes lower consumption and removal of heat.Thanks to the use of new efficient technologies, consumption of the card in 2D mode just 25W.Manufacturer MSI card placed quality and efficient condenser, which owes a stable operation and long life.In addition, improved the possibility of involvement of up to three graphics cards in SLi mode (In the case of the use of compatible motherboards), further increasing the already great graphics performance.

Thanks to the overwhelming number of new technologies, mainly due to the revolutionary Cuda investment in graphics cards, not only paid náruživým players, but all demanding users.The Cuda is able to use the enormous power not only to her acceleration, but also acceleration Game physics or very fast transfer of videos (When 15x faster than using the current processor).The number of applications using this technology is rapidly increasing and so is investment in new graphics card is actually paid.

In addition to maximum power in the card games also focus on high-image reproduction of Blu-Ray and HD DVD movies.This dynamic functions are ready to increase the contrast and color range, which will optimize the image scene after scene to ensure the grand image clarity.Graphics card supports Microsoft DirectX 10 and OpenGL 2nd1.

Parameters and specifications:

Chip:
NVIDIA GeForce GTX 285
The number of processor cores:240

Memory:
1 GB DDR3
512-bit bus
Bandwidth:158.7 GB / s.

Frequency:
Core:680 MHz
Memory:2500 MHz
RAMDAC:400 MHz

Interface:
PCI Express x16 2nd0

Resolution:
2560x1600

Outputs:
2 x DVI-I
TV output
HDMI - through reduction
D-Sub - through reduction

Cooling:
Implementation:DualSlot

Supported standards:
Support for Shader Model 4th0
Support for OpenGL 2nd1, Microsoft DirectX 10
NVIDIA SLi (support 2 and 3 cards)
NVIDIA PureVideo HD
Support for HDTV
NVIDIA PhysX Ready
NVIDIA Cuda Technology
NVIDIA HybridPower Technology

Warning:The graphics card requires a source of the power of 550 W and 12 branches of the load to 40 A.
