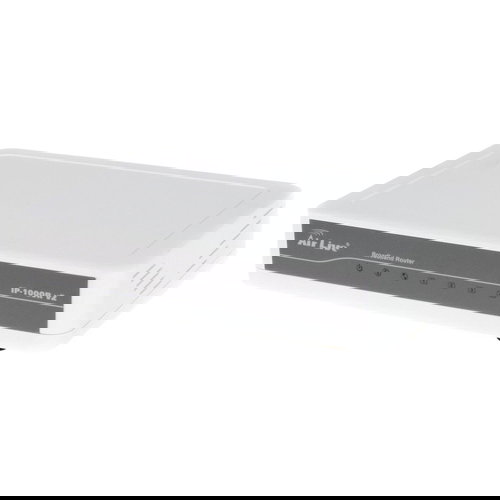

OvisLink eLive IP-1000Rv2

Universal čtyřportový broadband router with advanced functions OvisLink firewall, switch or DHCP server for 253 clients, including DHCP client, which allows to transmit information from the ISP.There are also ready to function as a proxy DNS, virtual server, Multi-session PPTP, L2PT or static routing and packet filtering.For the sake of activity connected computers are on the front panel LED displaying apparatus is switched on, the status of a LAN connection.Router is equipped with four LAN RJ-45 ports and one WAN port 10/100 RJ-45 and the whole configuration of devices is done by using advanced Web administration.Thanks to the many functions and large support the protocols can use the router as a PPPoE client, PPTP client L2TP client or cable modem.Built a firewall to protect the support DoS attack (including a warning by e-mail via POP3) and allows, for example, the planned administration, to set up what services are accessible to users in some time.
The parameters and specifications:
Ports:
1 x WAN 10/100 RJ-45
4 x LAN 10/100 RJ-45
Auto MDI / MDI-X
Supported protocols:
TCP / IP, NAT, ARP, ICMP, DHCP client / server, PPPoE, PPP, PAP, CHAP, NTP, HTTP, TFTP, POP3
Configuration:
Web browser
SNMP management
Position firewall:
SPI
Prevent DoS
L2TP
PPTP
IPsec filter
The ban on pingu WAN port
Power:
AC 9 V, 1 A
Dimensions:
160 x 115 x 30mm
Weight:
210 g
Certification:
Meet CE
FCC part 15 Class B
BSMI
VCCI
C-tick
Supported OS:
Microsoft Windows 95 / 98 / NT / ME / 2000 / XP
Unix, Linux
Mac OS
