SONOFF POWCT POW Ring Smart Power Meter
SONOFF POWCT POW Ring Smart Power Meter
SONOFF POWCT POW Ring Smart Power Meter

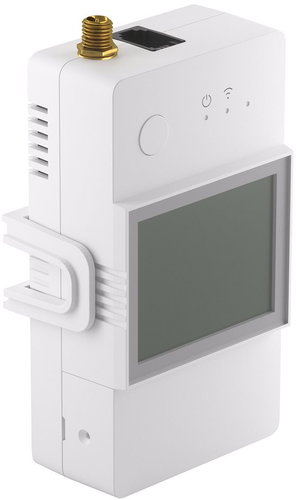

The Sonoff POW Ring Smart Power meter is a smart power meter with contactless current detection up to 100 A. Provides detailed real-time monitoring. Ideal for use in homes and commercial buildings where a photovoltaic power plant (PV) is installed. It is compatible with Android and iOS operating systems and can be controlled via voice assistants. The external WiFi antenna provides a better signal even inside the cabinet. Allows you to track energy consumption history for 6 months with the option to export the data. The Sonoff POW Ring Smart Power Meter is equipped with a relay with a 2 A output current that can be used to control a contactor.
Key Features of Sonoff POWCT POW Ring Smart Power Meter
- Sonoff POW Ring Smart Power meter is a smart power meter with contactless current detection
- The ideal assistant for monitoring photovoltaic power plants
- Supports Android and iOS operating systems
- It can be controlled via Google Assistant and Amazon Alexa voice assistants
- Compatible with IFTTT and eWeLink
- Maximum voltage 240 V, maximum total current 100 A
- Operating temperature from -40 to 50 °C, operating humidity 5 to 95%
- With surge protection
- 2.4GHz Wi-Fi connectivity
- With a maximum range of 130 m
- Dimensions: 98 × 54 × 31 mm
Compatibility with smart systems
The SONOFF POWCT POW switch supports Wi-Fi connectivity at 2.4GHz, allowing easy interaction with smart systems. It is compatible with Android and iOS operating systems. Compatible with Google Assistant and Amazon Alexa voice assistants and the IFTTT and eWeLink platforms, it provides a wide range of remote control options. It offers a maximum range of 130 m.
Alerts you when the consumption target is reached
The Sonoff POWCT boasts intelligent features for monitoring and managing your home's energy consumption. One of the main features is the ability to set thresholds. You can easily define daily and monthly consumption targets and the device will alert you when the limits are exceeded. Alerts are sent in real time, so you can react quickly to deviations from your planned budget.
Possibility to store consumption data
The SONOFF POWCT switch can be easily installed in the circuit panel to monitor power consumption in real time. In addition, it allows you to store and export historical consumption data for up to 6 months.
Sonoff POWCT switch can monitor solar panels
In addition to monitoring consumption in the home, the Sonoff POWCT is a great tool for monitoring solar panels. It allows you to see how much energy the panels have produced. When the daily consumption of solar panels exceeds 30 kWh, the switch can help you reduce your electricity bill by turning off non-essential household appliances.
Compact dimensions of the Sonoff switch
The Sonoff POWCT switch is designed for a maximum voltage of 240 V and a total current of up to 100 A. It is capable of operating in extreme conditions with operating temperatures from -40 to 50 °C and humidity from 5 to 95%. The Relé with a rated current output of 2 A is designed for contactor switching. With compact dimensions of 98 × 54 × 31 mm, the switch can be easily placed in various electrical cabinets.
Split core current transformer
ESP32 chip
Broad compatibility
Overload protection
Energy monitoring
Allows monitoring of consumption history
Contactor control support
Safe design
Timer
Specifications
Connection
Connectivity
Use
Technical specification
Features and functions
Usage
Dimensions
| Code: | SNFa102 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
