Teltonika TSW040
51.90 €

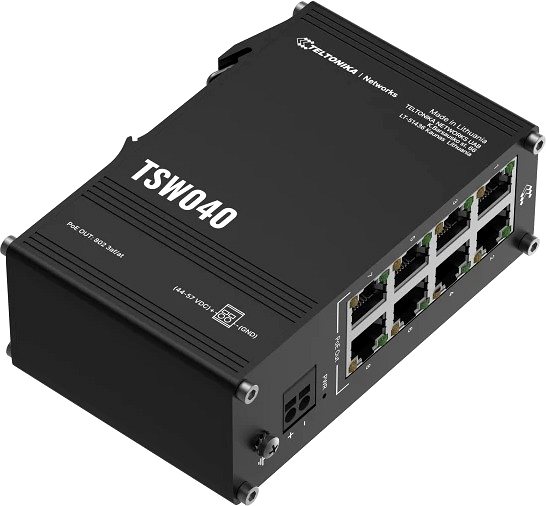

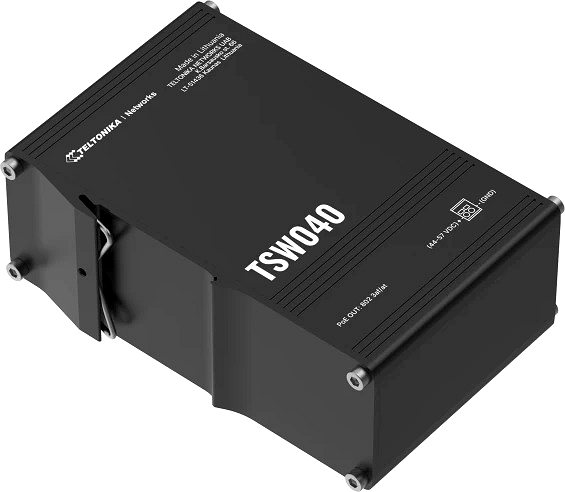

Teltonika TSW040
A network switch is an active network component connecting individual devices and other network elements. This model has a switching capacity of 160 Gb/s. The Switch features 8 × RJ-45 ports that facilitate connection with network elements. 10/100Base-T technology allows data transfer with a speed of up to 100 Mbit/s. The switch dimensions are 113 × 75 × 41mm. The Teltonika device includes PoE technology, which provides power and signal connection to end devices with just one LAN cable. The switch weighs 280g.
Key Features of the Teltonika TSW040 Switch
- For connecting end devices and other nodes
- 160 Gb/s switching capacity
- Equipped with 8 × RJ-45 ports
- PoE (Power over Ethernet) technology support
Whole description
Specifications
Type
Switch type
Unmanaged
Design
DIN
Use
Home, Company
Functions
Functions
Plug and play, PoE
Switching layer
L2
Ports
RJ-45
8 ×
10/100Base-T
8
Number of LAN ports
Number of LAN ports with 100 Mbit speed
8
PoE properties
PoE standard
802.3af (PoE), 802.3at (PoE+)
Performance
240 W
Maximum output power per port
30 W
Number of PoE ports
8 ×
Features
Power Supply
From the network, PoE
Speed
Switching capacity
160 Gb/s
Packet capacity (64B packets, in million of packets)
128 Mpps
Dimensions
Width
113 mm
Height
41 mm
Depth
75 mm
Material
Body material
Metal
Operating temperature
Minimum operating temperature
-40 °C
Maximum operating temperature
75 °C
Weight
Weight
280 g
Power outlet type
Country
Czechia, Slovakia, Hungary, Germany, Russia, Austria, Croatia, France, Poland, Romania, Slovenia
All parameters
| Code: | TELT24028 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
| Manufacturer information |
Teltonika Networks, K. Baršausko st. 66, LT-51436, Kaunas, Lithuania, [email protected], https://teltonika-networks.com/
|
