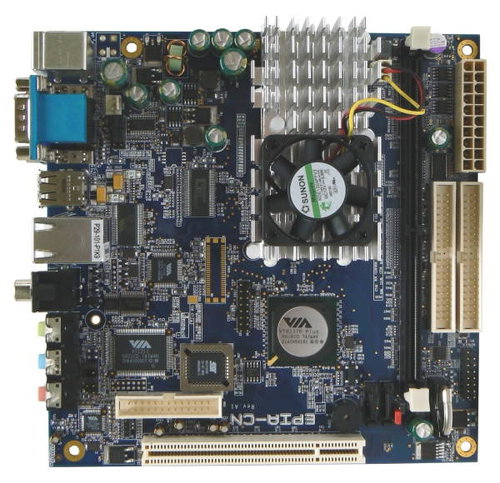

VIA EPIA CN13000G Mini ITX, integr. CPU VIA C3 V4 1,3GHz, VGA, TV-out, 1x DDR2 533, SATA, audio, USB

Motherboard format Mini-ITX with an integrated processor running at 1.3 GHz frequency, šestikanálovou sound card and video card Unichrome Pro AGP with support for decoding MPEG-2.The communication network is Ethernet LAN card.Orbis has one PCI slot for further expansion may be placed up to 1 GB DDR2 400/533 MHz memory.To connect external peripherals are available USB 2nd0 ports, serial and parallel port.Disk controller offers two Serial ATA ports and two Ultra ATA 133 channels, which can connect up to six devices.There is also a TV output with support for HDTV.The board is an ideal solution for small servers, home multimedia centers and set-top boxes.
The parameters and specifications:
Čipset:
VIA VT8237R
VIA CN700
Processor:
VIA C3 NanoBGA2 1.3 GHz
RAM:
1 slot for memory DDR2 400/533 MHz
The maximum size of 1 GB of memory
Extension slots:
1 x PCI
Video card:
Integrated S3 Graphics UniChrome Pro AGP
MPEG-2 decoder
Controllers discs:
2 x Ultra ATA 133 (max4 devices)
2 x Serial ATA (max.2 facilities)
Network card:
VIA VT6103 10/100 Mbps
Audio:
VIA Vinyl VT1618 AC'97 Codec
TV output:
VIA VT1625 HDTV Encoder
Inputs and outputs:
2 x PS / 2
1 x RJ-45
1 x serial port
4 x USB 2nd0
1 x VGA
1 x S-Video
1 x Audio I / O
Extension connectors:
4 x USB 2nd0
1 x Parallel port
Power:
1 x ATX connector
Dimensions:
170 x 170 mm Mini-ITX
