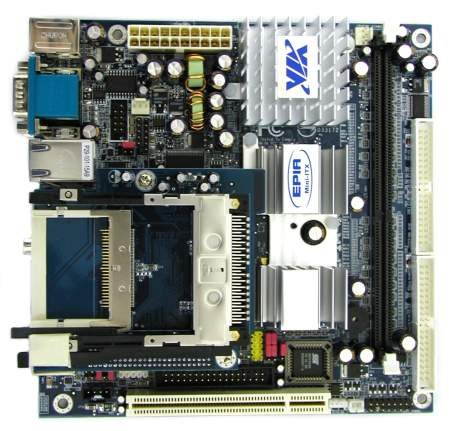

VIA EPIA MII6000EG

Unique motherboard with an integrated processor, audio, video, network card and a PCMCIA interface and CompactFlash, moreover, fitted with only passive cooling guaranteeing absolutely noiseless operation.Of course there are USB 2nd0 ports and FireWire port.The ideal solution for small servers, routers or industrial use.Completely silent operation - the board does not contain any active fan!
Properties and parameters:
Chipset:
VIA CLE266 North Bridge
VT8235 South Bridge
Processor:
VIA C3 Eden 600 MHz
Memory:
1 slot for DIMM DDR 266 MHz memory
The maximum size of 1 gigabyte of memory
Video card:
VIA Castlerock AGP
TV-out
Network card:
VIA VT6103 10/100 Base-T Ethernet PHY
Audio:
VIA VT1616 6-channel AC'97 codec
Inputs and outputs:
2 UltraDMA 133/100/66 connector
1 controller for the FDD
1 standard PCI slot
2 USB 2nd0 ports (+1 pinheader the bracket)
1 serial port
3 audio 3rd5 Jack connectors
1 RCA connectors (SPDIF or TV output)
1 S-Video connector
1 RJ-45 port
2 PS / 2
1 FireWire (+1 pinheader the bracket)
1 IIC interface
1 PCMCIA
1 Compact Flash interface
Dimensions:
170 x 170 mm Mini-ITX
