ASROCK B860M Lightning WiFi
ASROCK B860M Lightning WiFi

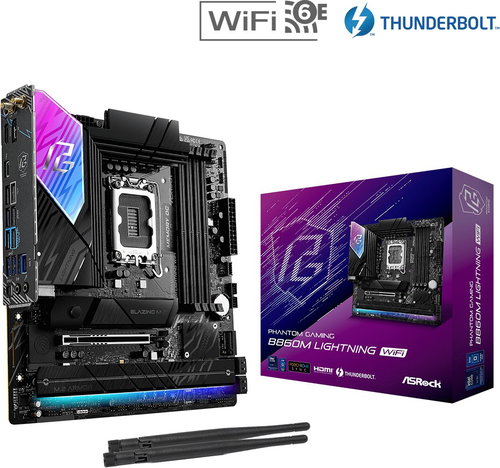

The ASROCK B860M Lightning WiFi is a motherboard packed with modern technologies like PCIe 5.0, Wi-Fi 6E, and Thunderbolt 4, delivering superb connectivity and speed. This mATX board supports 2nd generation Intel® Core™ Ultra processors (LGA1851) and DDR5 memory with overclocking capabilities up to 8666MHz, ensuring stable performance even during the most demanding tasks. Combined with enhanced cooling and advanced features for gamers, such as Nahimic Audio for an outstanding sound experience, it's the ideal choice for demanding users. What's more, with support for PCIe 5.0 and M.2 SSDs, the board is ready for future demands, guaranteeing long-term relevance and performance.
Intel B860
Chipset
Intel 1851
Socket
mATX (Micro ATX)
Form factor
DDR5
Memory type
4×
Number of RAM slotsKey features of the ASROCK B860M Lightning WiFi motherboard
- PCIe 5.0 for ultra-fast data transfers
- Wi-Fi 6E for better connectivity and lower latency
- Nahimic Audio for premium sound and clear communication
- DDR5 support up to 8666MHz for maximum performance
- Thunderbolt 4/USB4 for fast data transfer and external monitor support
- M.2 Heatsink Toolless Design for easy SSD installation
- 2.5Gb/s LAN for higher network connection speeds
Cooling and stability
This board is equipped with an intelligent cooling system, including an optimised aluminium heatsink and support for PWM/DC fans for effective temperature control. It also offers a patented Memory OC Shield to ensure stability when overclocking memory and extended cooling options for M.2 SSDs. All these technologies contribute to long-term system stability, which is crucial for gamers and demanding users.
Performance and system stability
The ASROCK B860M Lightning WiFi is designed for maximum performance and stability, which is ensured by high-quality components and an improved power supply. The board offers a 12+1+1+1+1 phase power design with 80A SPS for the CPU, guaranteeing a smooth and stable power delivery, even when overclocking. With support for DDR5 XMP and EXPO memory overclocking and enhanced cooling for M.2 SSDs, it ensures optimal temperatures even under heavy workloads. An emphasis on quality materials and advanced technologies like the 20K Black Capacitor and 2oz Copper PCB helps the board achieve higher efficiency and performance at lower temperatures, making it ideal for demanding gaming and work applications.
Ports
Storage
- Number of SATA III: 4
- Number of M.2: 4
- M.2 Slot 1 - M.2 PCI-E NVMe Gen5
- M.2 Slot 2 - M.2 PCI-E NVMe Gen4
- M.2 Slot 3 - M.2 PCI-E NVMe Gen4
- M.2 Slot 4 - M.2 PCI-E NVMe Gen4
USB ports
- Internal USB 2.0: 2
- Internal USB 3.2 Gen 1: 4
- Internal USB-C 3.2 Gen 2: 1
- Rear USB 2.0: (via external connectors)
- Rear USB 3.2 Gen 1: 4
- Rear USB 3.2 Gen 2: 2
- Thunderbolt 4: 1
Graphics
- HDMI 2.1: 1
- DisplayPort 1.4: 1
- Graphics outputs: HDMI 2.1, DisplayPort 1.4, Thunderbolt 4
Sound
- Number of channels: 7.1 (8.0 channels - Realtek ALC1220)
- Rear connectors: Jack (3.5 mm), Optical S/PDIF
Other
- Power supply: 24pin, 8pin (mATX standard)
- Cooling: PWM FAN connectors (4-pin)
- Internal: RGB LED Header, TPM header
- Retry
Choosing a motherboard
When choosing a motherboard, it's important to pay particular attention to the motherboard socket type, format, and chipset. These are among the most crucial parameters, ensuring the board's compatibility with the processor, expansion cards, and other components. The specific socket determines your choice of a suitable processor, while the remaining connectors dictate which other components you'll need for your future computer.Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
